TMFI and TMFI micro downdraft table

DOWNDRAFT TABLE FOR DUST EXTRACTION

Efficiency - Mobility - Personal protection - Quality - Simplicity

STIVENT INDUSTRIE^® offers you a mobile, autonomous suction product to improve working conditions at the station, with control panel and filter monitoring.

Indoor ATEX zone 21 construction.

Simplicity, cumulative filtration with monitoring of clogging to indicate replacement.

High filtration, 2 stages F7 and H13 for air filtered at 99.9%.

Convenience, mobile and supplied with three-phase 380V or mono 220V, it will easily find its place in your workshop.

Modular, hinged cheeks will allow you to work punctually longer pieces.

Reliability, proven solution with components of industrial quality, a product designed to last.

Discreet, with a noise level below 75 dB.

Adaptability, to further improve its use, options are available

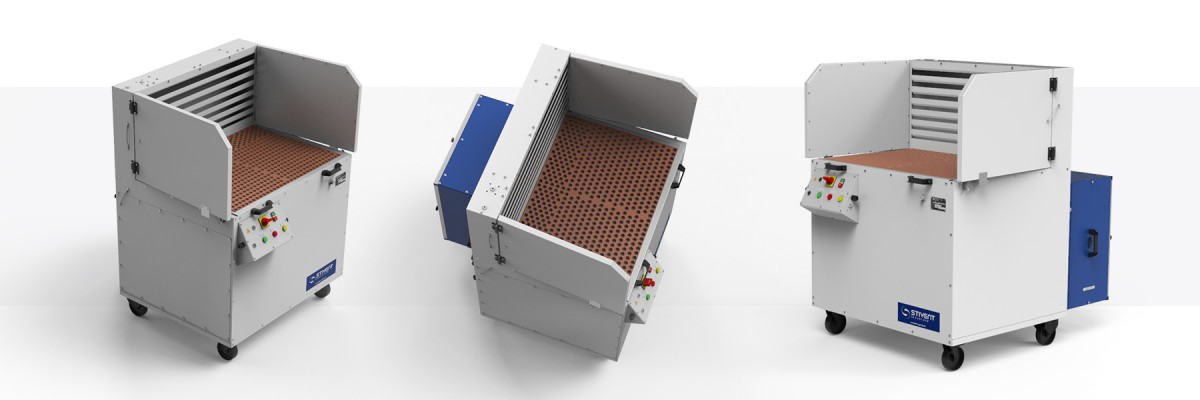

> TMFI

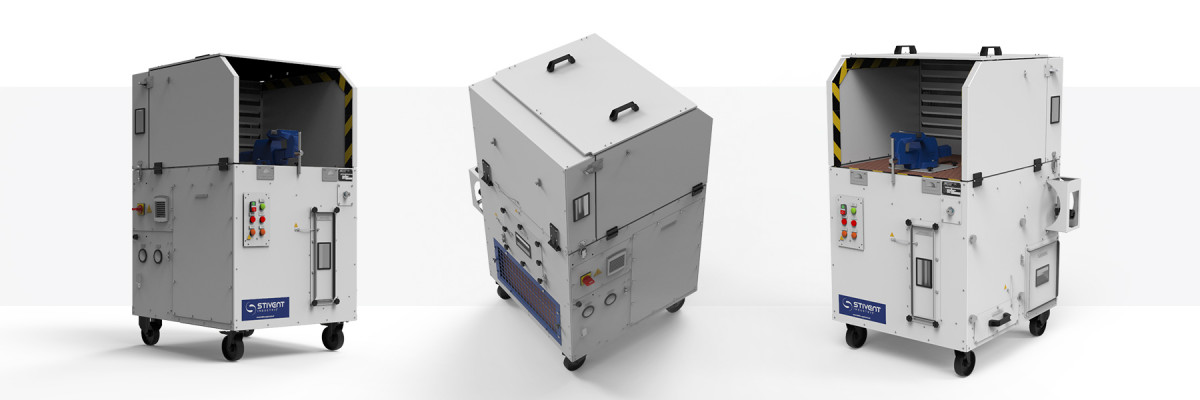

> TMFI MICRO

Options

• Personalised painting.
• Modular lighting by 35W articulated lamp.
• Absolute filter H14 99.995% instead of H13.
• Adaptation for external discharge.
• ATEX certification (LCIE) for use outside risk areas.
• ATEX certification (LCIE) for use in hazardous areas (remote control unit).
• Particle probe.
• Other adaptations on study.

The dust is collected by the filter placed directly under the work surface.
The purified air comes out of this filter to be exhausted either outside or through a HEPA H13 filter (optional).

An additive manufacturing version for coating parts is available on request.
