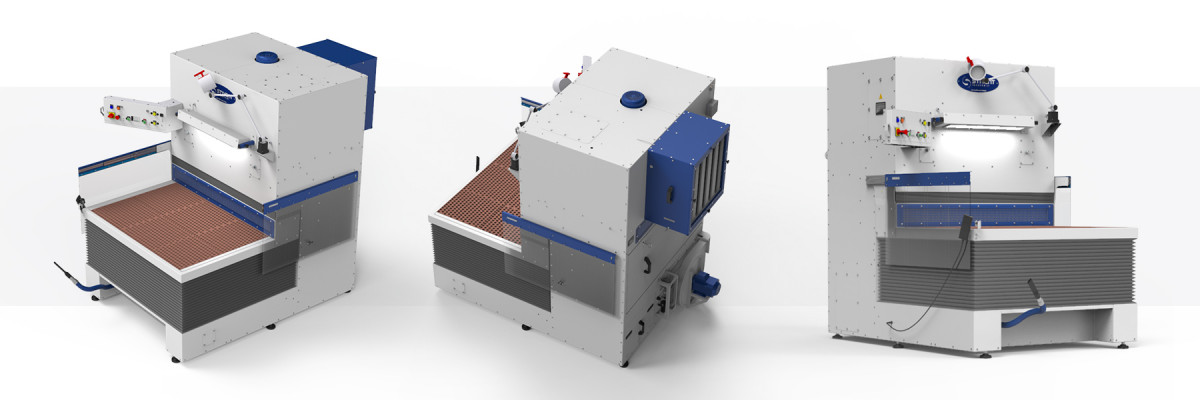

Up and Down downdraft table

AUTONOMOUS AND ERGONOMIC DOWNDRAFT TABLE

With an already wide range of downdraft tables for dust, STIVENT INDUSTRIE^® further enriches its offer with the UD table.

This unique model integrates all the technical, ergonomic and qualitative elements that made the success of the TC700 model by adding a strong ergonomic dimension. Integrating electric cylinders, the UD table allows an optimisation of the working position as well as an easy loading by bridge or jib type means.

Product quality always at the top with own parts and increased productivity of your operators who benefit from an optimal working position.

Ergonomics, with a 400 mm stroke adjustment, any intermediate position possible from 500 to 900 mm.

Efficient, no dust escapes it with its 0.7 m/s air speed and 5000 m3/h flow rate associated with HEPA filtration >99.9%.

Comfort, with powerful LED lighting.

Reliability and longevity, with an automatic filtration cleaning system.

Respect for the parts, with a soft plastic surface compatible even with aluminium.

Robust, loading capacity of 200 or 400 kg depending on the configuration.

Adaptable, thanks to an extensive catalogue of options.

Silent, with less than 75 dB (excluding soundproofing) it will be discreet in your workshop.

Economical, less than 2 Kw of installed power and the possibility of discharging air in the workshop.

Plug and play compressed air and three-phase 380V and it's ready. Easy to relocate too.

USES

Sanding, grinding, polishing, deburring, rectification, adjusting, finishing, cutting, cleaning, dust extraction, material mixing, material dosing, weighing, welding, cleaning.

Any solid material, even those presenting an ATEX risk.

DISCOVER IT ON VIDEO:
